Zapier Integration

The Fax API Zapier integration allows you to use features of the Fax API with your Zapier solutions.

Note:

If you are unfamiliar with Zapier triggers, actions, and Zaps, see Zapier's Create your first Zap quick start guide.

Descriptions of the Sinch Fax API action and trigger, along with general prerequisite information, are below.

Prerequisites

To successfully integrate your Sinch project and services with your Zapier account, you must ensure that the following prerequisites are met.

Zapier prerequisites

Ensure that you have created a Zapier account.

Sinch prerequisites

To successfully connect a Sinch Fax API project to a Zapier account, and use Sinch actions and triggers with Zapier, you must have a Fax API service.

Connect your Sinch project

After you have met the above prerequisites, you are ready to connect your Sinch account and project to your Zapier account.

For Sinch triggers or actions to function in your Zap, you must connect your Sinch project to Zapier. To connect your project to Zapier, you'll need to have the following pieces of information (found on the Build dashboard) readily available:

Your project ID
Your access key ID
Your access key secret

To connect your account, begin configuring a Sinch trigger or action. If you have never connected a Sinch project to Zapier, you are prompted to do so. If you have already connected a Sinch project to Zapier, but would like to connect a new one, you can select + Connect a new account from the Sinch account drop-down list.

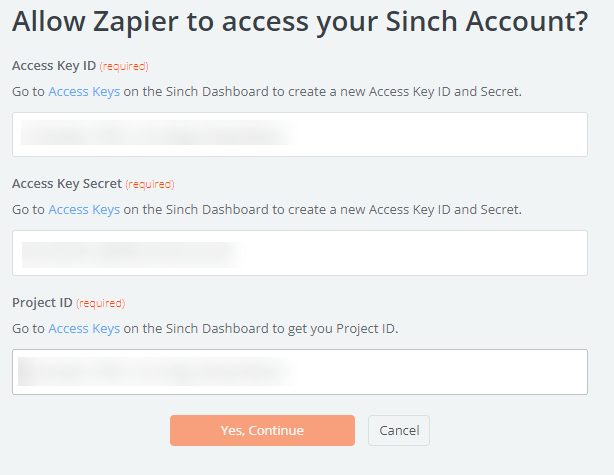

Enter the information and click Yes, Continue when you are done. Your Sinch project is now connected to Zapier! You will be able to select this project from the Sinch account drop-down list whenever you configure a Sinch trigger or action.

Zapier credentials

Triggers

Triggers can be used to initiate other Zapier actions. For the Fax API integration, these Zapier triggers act as webhooks that can subscribe to Fax API webhooks.

Inbound Fax

This instant trigger is activated when your Fax service receives an inbound fax. Simply select which Fax service to use to register the webhook.

Caution:

A Fax API service can only have one webhook at a time. When you create a trigger it registers a webhook against the specified Fax service. Because the Fax service can only have one webhook, you can only create one Inbound Fax trigger per Fax service.

When you configure an action to execute based on this trigger, you can select information from the trigger to be passed to the action. The following fields are available to choose from:

Field	Description
Trigger Event	The type of event that activates the trigger.
Event Time	The date and time that the trigger activated.
File Type	The type of file attached to the event.
Attached Fax Document	The actual fax document attached to the event.
Fax ID	The ID of the fax.
Direction	The direction of the fax.
From Phone Number	The fax number that sent the fax.
To Phone Number	The fax number that received the fax.
Number of pages	The total number of pages of the fax.
Status	The status of the fax.
Price amount	The total cost of the fax.
Price currency	The currency of the price of the fax.
Created time	The date and time when the fax was first created.
Completed time	The date and time when the fax completed.
Project ID	The project ID to which the fax service belongs.
Service ID	The service ID which was used to send the fax.
Header text	The text of the fax header.
Header timezone	The timezone used for the time displayed on the fax header.
Header page numbers	Displays whether the page numbers are displayed on the header or not.
Retry delay seconds	The configured amount of seconds to delay before retrying the fax.
Retry count	How many times the service retried sending the fax.
Max retries	The total number of times the service will retry to send the fax.
Barcode type	The type of barcode used in the fax.
Barcode page	The page number on which the barcode was found.
Barcode value	The value of the barcode.
Image Conversion Method	Determines how documents are converted to black and white on OUTBOUND faxes only. Image conversion is not done on INBOUND faxes. Defaults to value selected on Fax Service object.
Image resolution	The resolution of the fax.
Callback Url	The URL configured for the fax to receive callback requests.
Callback Content Type	The content type of the callback, either `multipart/form-data` or `application/json`.
Has file attachment	Displays whether the fax has a file attached or not.

Actions

Actions can be initiated in response to triggers, including Sinch-specific triggers.

Send a Fax

This action allows you to send a fax using the Fax API. To send a message, you must populate the following fields:

Field	Description
Recipient's numbers	The fax numbers to which you want to send the fax. These must be in E.164 format.
Sender number	A number assigned to your Fax service from which you want the fax to be sent. This must be in E.164 format. Defaults to the number set as the default number for your Fax service.
Fax file (as binary)	Required if Fax file (as URL) is empty. The file to send as the fax attachment. If you have a URL to the file, use the Fax File (as url) field instead.
Fax file (as URL)	Required if Fax file (as binary) is empty. A list of URLS to send as a fax attachment (supports basic authentication).
Resolution	The desired scan resolution for the fax. Available options are Fine (200 DPI) and Superfine (400 DPI). Fine is commonly accepted, while Superfine is less commonly accepted but may be required when sending small text or detailed images.
Header text	Text that will be displayed at the top of each page of the fax.
Header Page numbers	Displays page numbers in the header. Select Yes to display the page numbers or No to remove them.
Header timezone	The timezone you want to use for the timestamp in the header.
Labels	Key value pairs you can configure in your solution to pass custom data.
