Getting started with Sinch In-app Calling for Android SDK

This guide shows you how to get started integrating your Android application with the In-app Calling SDK. Because this is just a getting started guide, we only covers basic steps how to sign in to the In-app Calling SDK and how to make and receive audio calls.

For more complex examples and documentation, check inside the SDK package file or look at our tutorials.

Prerequisites

• Android Studio and Android SDK tools available here.
• In-app Calling SDK for Android.
• For convenience 2 physical Android devices (however 1 physical and 1 emulator is enough for testing purposes)

Create Android Studio project

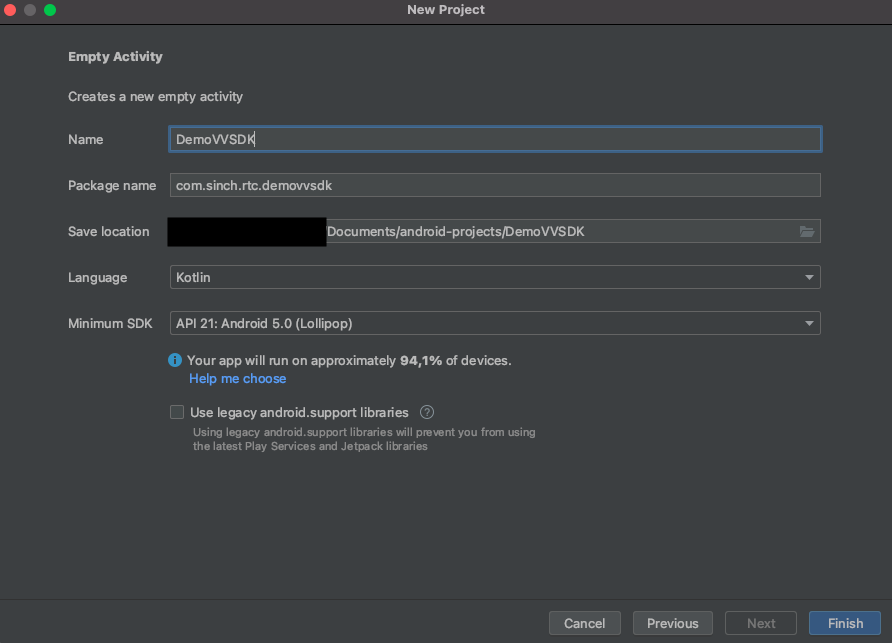

Create a new Android Studio project using the 'Empty activity' template.

Add Sinch Voice and Video SDK to your Android application

1. In your web browser, go to Sinch SDKs Download page.
2. Find the Android SDK for Java, download the zip file and extract it.
3. Along with the library itself, the package also contains documentation and sample applications. For the purpose of this tutorial only the aar file is needed. Locate it inside the 'libs' folder and copy it to your clipboard.

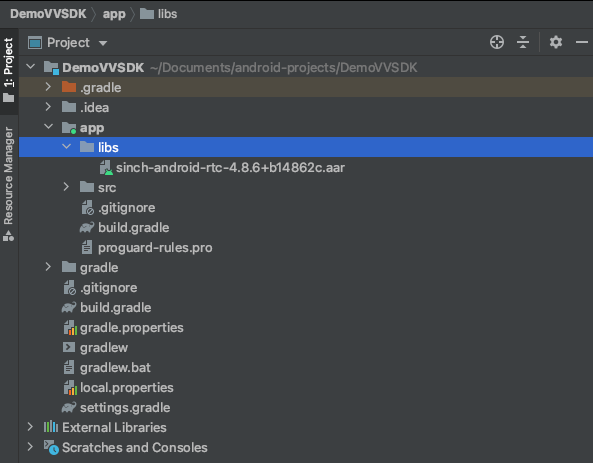

4. Paste it to <your android application name>/app/libs directory.



5. Edit your app's build.gradle file located under app/build.gradle to include the following: app/build.gradle

repositories {
    flatDir {
        dirs 'libs'
        }
    }

dependencies {
    implementation(name:'sinch-android-rtc', version:'+', ext:'aar')
    ///
    }

You should see a message that gradle files have changed. Click Sync now and wait for Android Studio to adopt your changes.

Interacting with Voice and Video SDK

1. Create a new Kotlin class that extends Service component (don't forget to define the service in your AndroidManifest.xml file).
2. Add SinchClient instance as a member variable.
3. Create a function that builds the client.

The result of these steps is demonstrated below:

    class SinchService : Service() {

        companion object {
            private const val APP_KEY = "enter-application-key"
            private const val APP_SECRET = "enter-application-secret"
            private const val ENVIRONMENT = "ocra.api.sinch.com"
        }

        private var sinchClient: SinchClient? = null

        private fun createClient(username: String) {
            sinchClient = SinchClient.builder().context(applicationContext)
                .userId(username)
                .applicationKey(APP_KEY)
                .environmentHost(ENVIRONMENT)
                .pushConfiguration(
                    PushConfiguration.fcmPushConfigurationBuilder()
                        .senderID(APP_FCM_SENDER_ID)
                        .registrationToken(getFcmRegistrationToken(this).orEmpty()).build()
                )
                .pushNotificationDisplayName("User $username")
                .build()
            sinchClient?.addSinchClientListener(MySinchClientListener())
            sinchClient?.callController?.addCallControllerListener(SinchCallControllerListener())
        }
        ///
    }

To make this example work for you, you need to update some values:

There are a few other elements to notice:

• The environmentHost parameter is the endpoint of the REST API the SDK is targeting.
• The UserId parameter is the user identifier to register within your application (the specific value will be provided after clicking Login button in the Android application).

    override fun onCredentialsRequired(clientRegistration: ClientRegistration) {
        clientRegistration.register(create(APP_KEY, APP_SECRET, settings.username))
    }

Implementation of the JWT class can be found in any of samples provided with the SDK package.

Communication between views and service

To communicate between your application view layer (activities and fragments) and the Sinch client that lives inside the Service instance, we implement a bound service pattern. Information about what's a bound service and how it works can be found on the official Android SDK documentation website.

1. Inside SinchService create an inner class that extends Binder.
2. Add basic functionality that allows the application to start Sinch client for a given username and provide a way to be notified about the initialization result:
   Copy

   Copied

       private var listener: StartFailedListener? = null

       interface StartFailedListener {
           fun onFailed(error: SinchError)
           fun onStarted()
       }

       inner class SinchServiceInterface : Binder() {

           fun startClient() {
               // The username is fetched from settings.
               start()
           }

           fun setStartListener(listener: StartFailedListener?) {
               this@SinchService.listener = listener
           }
       }

3. Override onBind method to return SinchServiceBinder
   Copy

   Copied

       private val sinchServiceInterface: SinchServiceInterface = SinchServiceInterface()

       override fun onBind(intent: Intent): IBinder {
           ...
           return sinchServiceInterface
       }

Logging into the application

1. Rename MainActivity and activity_main.xml files inside AndroidStudio (that were initially created after setting up the project) to LoginActivity and login.xml. Right click on the filename and choose Refactor -> Rename.
2. Create a simple layout containg EditText (for entering the username) and login button.
   Copy

   Copied

       <LinearLayout
           android:id="@+id/userNameInput"
           android:layout_width="fill_parent"
           android:layout_height="wrap_content"
           android:layout_centerVertical="true"
           android:orientation="vertical"
           android:paddingLeft="@dimen/margin_big"
           android:paddingRight="@dimen/margin_big">

               <com.google.android.material.textfield.TextInputLayout
                   style="@style/Widget.MaterialComponents.TextInputLayout.OutlinedBox.Dense"
                   android:layout_width="match_parent"
                   android:layout_height="wrap_content"
                   android:layout_marginBottom="@dimen/input_layout_bottom"
                   android:layout_marginTop="@dimen/margin_big"
                   android:hint="@string/enter_your_id"
                   app:startIconDrawable="@drawable/ic_baseline_person_24_black"
                   app:startIconTint="@color/colorPrimaryDark">

                   <com.google.android.material.textfield.TextInputEditText
                       android:id="@+id/loginName"
                       android:inputType="text"
                       android:imeOptions="actionDone"
                       android:layout_width="match_parent"
                       android:layout_height="wrap_content" />

               </com.google.android.material.textfield.TextInputLayout>

       </LinearLayout>

       <com.google.android.material.button.MaterialButton
           android:id="@+id/loginButton"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           android:layout_alignParentBottom="true"
           android:layout_centerHorizontal="true"
           android:layout_gravity="center_horizontal"
           android:layout_marginStart="@dimen/margin_average"
           android:layout_marginEnd="@dimen/margin_average"
           android:layout_marginBottom="@dimen/margin_average"
           android:padding="@dimen/margin_base_plus"
           android:text="@string/login"
           android:textColor="@color/white"
           app:backgroundTint="@color/sinch_green" />

3. Inside the LoginActivity file first bind to the Sinch client service by calling
   Copy

   Copied

       private fun bindService() {
           val serviceIntent = Intent(this, SinchService::class.java)
           applicationContext.bindService(serviceIntent, this, BIND_AUTO_CREATE)
       }

   Note that as a second argument LoginActivity is passed, meaning it has to implement the Service Connection interface.
4. Inside onServiceConnected in BaseActivity callback assign provided binder to a local variable for later usage for communicating with the service and assign LoginActivity as a listener to get notifications about success or failure when starting Sinch client.BaseActivity
   Copy

   Copied

       protected var sinchServiceInterface: SinchService.SinchServiceInterface? = null
           private set

       override fun onServiceConnected(componentName: ComponentName, iBinder: IBinder) {
           if (SinchService::class.java.name == componentName.className) {
               sinchServiceInterface = iBinder as SinchService.SinchServiceInterface
               onServiceConnected()
           }
       }
       protected open fun onServiceConnected() {
           // for subclasses
       }

   LoginActivity
   Copy

   Copied

       override fun onServiceConnected() {
           if (sinchServiceInterface?.isStarted == true) {
               openPlaceCallActivity()
           } else {
               sinchServiceInterface?.setStartListener(this)
           }
       }

5. Finally assign the login button a click listener that initiates and starts the Sinch client:
   Copy

   Copied

       override fun onCreate(savedInstanceState: Bundle?) {
           super.onCreate(savedInstanceState)
           //
           loginButton.apply {
               setOnClickListener { loginClicked() }
           }
       }

       private fun loginClicked() {
           val username = loginNameEditText.text.toString()
           sinchServiceInterface?.username = username
           startClientAndOpenPlaceCallActivity()
       }

6. Return to SinchService implementation. Inside onClientStarted and onClientFailed callbacks of SinchClientListener simply pass the result to the sinchClientInitializationListener.
   Copy

   Copied

       override fun onClientFailed(client: SinchClient, error: SinchError) {
           listener?.onFailed(error)
           ...
       }

       override fun onClientStarted(client: SinchClient) {
           listener?.onStarted()
       }

7. Before launching the application declare 2 permissions inside your AndroidManifest.xml file that are required to start the SinchClient:
   Copy

   Copied

       <uses-permission android:name="android.permission.INTERNET"/>
       <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>

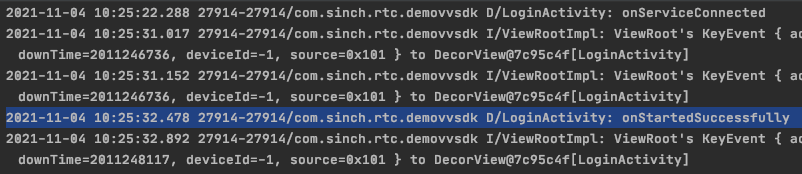

8. Run the application, enter a username of your choice and verify your logcat output. You should see that the client was started successfully.

Next steps

Now that your application is created, you can configure that application to make a call.
