Handling incoming calls

In the previous section we added the capability of initiating the call. This section describes how to receive notifications and handle incoming calls.

If you haven't yet initiated a call, go back and follow the steps in that section.

Note:

To test if the call succeeded and audio connection is established, it's best to have 2 physical Android devices however you can initiate the call on the emulator.

Setting up FCM push notifications

To receive notifications about incoming calls, you must set up your application to work with either FCM or HMS Push Notification Platform. Information about how to add this capability and comparison of these platforms can be found here. For this step-by-step guide we showcase FCM and assume that you have your google-services.json file generated and downloaded.

  1. Copy your 'google-services.json' file to <your android application name>/app/ directory.
  2. Create FCMService class that extends FirebaseMessagingService. Declare the service inside AndroidManifest.xml file.

    app/src/main/AndroidManifest.xml

    Copy
    Copied
        <service
            android:name=".fcm.FcmListenerService"
            android:exported="false">
            <intent-filter>
                <action android:name="com.google.firebase.MESSAGING_EVENT" />
            </intent-filter>
        </service>
  3. Inside service's onMessageReceived callback make sure the payload received indicates an incoming call. If it does, pass it to bound SinchService and let the Sinch client handle notifying the observers.

    app/src/main/java/com/sinch/rtc/sample/push/fcm/FcmListenerService.kt

    Copy
    Copied
    override fun onMessageReceived(remoteMessage: RemoteMessage) {
        val data = remoteMessage.data
        if (!isSinchPushPayload(data)) {
            Log.d(TAG, "Non Sinch push payload received. Ignoring.")
            return
        }
        val result = try {
            queryPushNotificationPayload(applicationContext, data)
        } catch (e: Exception) {
            Log.e(TAG, "Error while executing queryPushNotificationPayload", e)
            return
        }

        object : ServiceConnection {
            private var callNotificationResult: CallNotificationResult? = null

            override fun onServiceConnected(name: ComponentName, service: IBinder) {
                callNotificationResult?.let {
                    val sinchService = service as SinchService.SinchServiceInterface
                    try {
                        sinchService.relayRemotePushNotificationPayload(it)
                    } catch (e: Exception) {
                        Log.e(TAG, "Error while executing relayRemotePushNotificationPayload", e)
                    }
                }
                callNotificationResult = null
            }

            override fun onServiceDisconnected(name: ComponentName) {}

            fun relayCallNotification(callNotificationResult: CallNotificationResult) {
                this.callNotificationResult = callNotificationResult
                createNotificationChannel(NotificationManager.IMPORTANCE_MAX)
                applicationContext.bindService(
                    Intent(applicationContext, SinchService::class.java), this,
                    BIND_AUTO_CREATE
                )
            }
        }.relayCallNotification(result)
    }
    Note:

    See the implementation of FcmListenerService inside sinch-rtc-sample-push sample for a complete implementation of FCM messanging service that covers others aspects of Firebase messanging functionality.

  4. Modify SinchService binder by adding method forwarding push payload to Sinch client.

    app/src/main/java/com/sinch/rtc/sample/push/SinchService.kt

    Copy
    Copied
        fun relayRemotePushNotificationPayload(result: CallNotificationResult) {
            ...
            createClientIfNecessary()
            sinchClient?.relayRemotePushNotification(result)
        }

Listening for incoming calls

  1. Inside the Service create client method add logic responsible for adding a CallControllerListener to call client:

    app/src/main/java/com/sinch/rtc/demovvsdk/SinchService.kt

    Copy
    Copied
    private fun createClient(username: String) {
        // Client creation steps.
        sinchClient?.callController?.addCallControllerListener(SinchCallControllerListener())
    }
  2. Implement onIncomingCall callback asking user if he wants to accept or decline the call:

    app/src/main/java/com/sinch/rtc/sample/push/SinchService.kt

    Copy
    Copied
        override fun onIncomingCall(callController: CallController, call: Call) {
            val intent = Intent(applicationContext, IncomingCallScreenActivity::class.java)
                .apply {
                    putExtra(
                        IncomingCallScreenActivity.EXTRA_ID,
                        IncomingCallScreenActivity.MESSAGE_ID
                    )
                    putExtra(CALL_ID, call.callId)
                }
            val inForeground = isAppOnForeground(applicationContext)

            if (!inForeground) {
                intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK or Intent.FLAG_ACTIVITY_CLEAR_TASK)
            } else {
                intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK)
            }

            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q && !inForeground) {
                (getSystemService(NOTIFICATION_SERVICE) as NotificationManager).notify(
                    IncomingCallScreenActivity.MESSAGE_ID,
                    createIncomingCallNotification(call.remoteUserId, intent)
                )
            } else {
                applicationContext.startActivity(intent)
            }
        }
  3. Build and run the application on both devices. Log into the application providing 2 different usernames (TestCaller and TestCallee).
  4. On the first device enter TestCallee as the 'callee name' and press CALL .

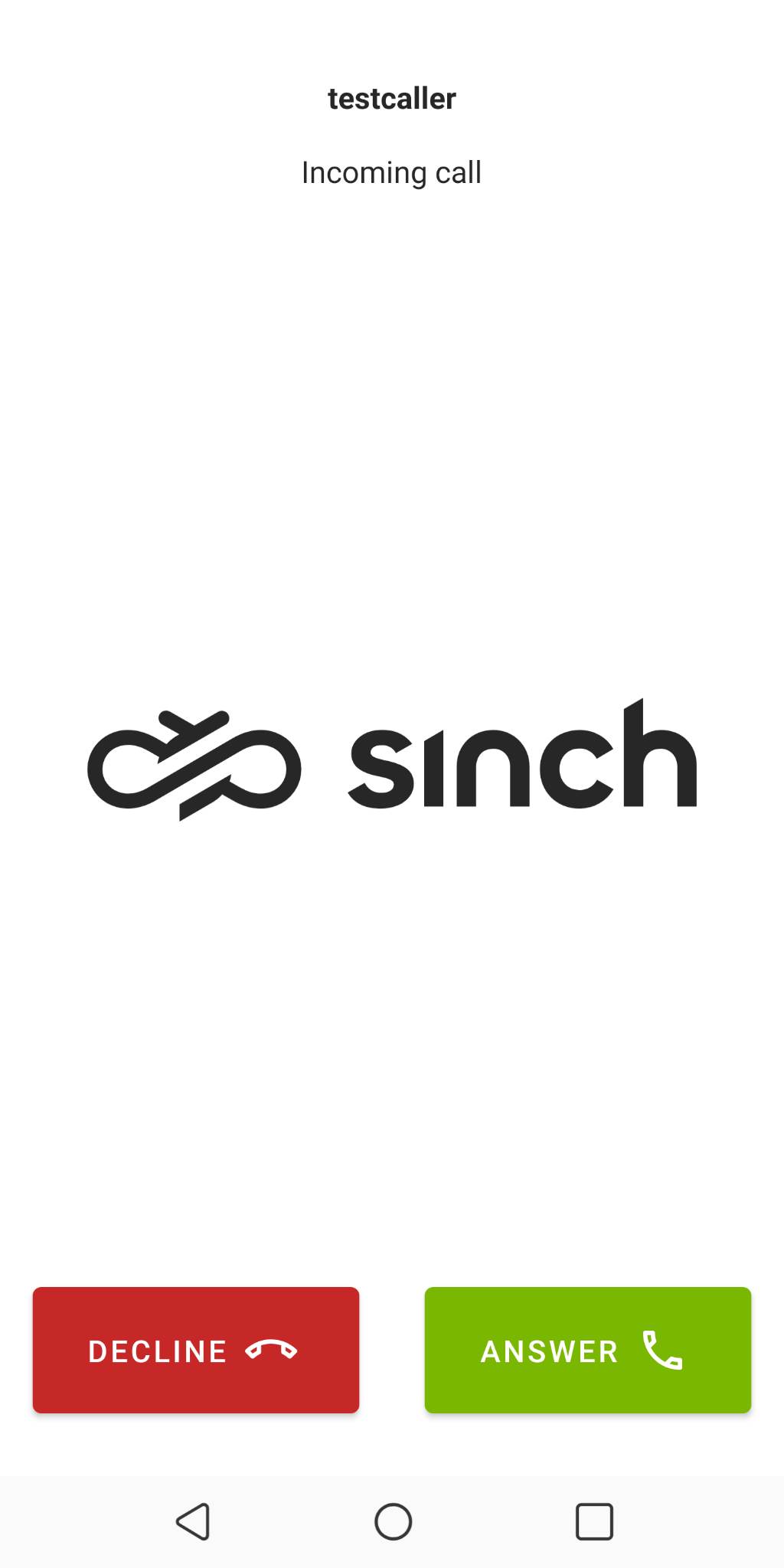

  5. On the second device you should see a screen asking if you want to accept or decline the call. incoming
  6. Press Accept and begin your conversation!

Ending the call

Once the connection is established users should be able to finish the conversation. We will implement this feature by adding a simple button visible only after answering the call.

  1. Inside callscreen.xml file define a button that stays initially hidden:

    app/src/main/res/layout/callscreen.xml

    Copy
    Copied
        <com.google.android.material.button.MaterialButton
            android:id="@+id/hangupButton"
            style="@style/Widget.MaterialComponents.Button.Icon"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true"
            android:layout_centerHorizontal="true"
            android:layout_gravity="center_horizontal"
            android:layout_marginStart="@dimen/margin_average"
            android:layout_marginTop="@dimen/margin_small"
            android:layout_marginEnd="@dimen/margin_average"
            android:padding="@dimen/margin_base_plus"
            android:text="@string/end_call"
            android:textAlignment="center"
            android:textColor="@color/white"
            app:backgroundTint="@color/sinch_decline_red"
            app:icon="@drawable/ic_outline_call_end_24"
            app:iconGravity="textEnd" />
  2. Add the method responsible for handling click of the hangup button inside CallScreenActivity .

    app/src/main/java/com/sinch/rtc/sample/push/CallScreenActivity.kt

    Copy
    Copied
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ...
        endCallButton.setOnClickListener { endCall() }
    }

    private fun endCall() {
        ...
        call?.hangup()
        finish()
    }
  3. Finally on the callee side, after answering the call we need to add an instance of the call listener to the call object itself. It's important to understand that in that case there are 2 call listeners alive. First one at the caller site (added via callController.addCallControllerListener(SinchCallControllerListener()) method invocation) notifying about state of outgoing call and the second one, on the callee site added once the call is answered:

    app/src/main/java/com/sinch/rtc/sample/push/IncomingCallScreenActivity.kt

    Copy
    Copied
    override fun onServiceConnected() {
        val call = call
        if (call != null) {
            // Adding call specific listener.
            call.addCallListener(SinchCallListener())
            remoteUserTextView.text = call.remoteUserId
            if (ACTION_ANSWER == action) {
                answerClicked()
            } else if (ACTION_IGNORE == action) {
                declineClicked()
            }
        } else {
            Log.e(TAG, "Started with invalid callId, aborting")
            finish()
        }
    }

Next steps

Now that you've built a simple app to make and receive calls, learn more about the Android SDK.
