Authentication & Authorization

Secure your application and authorize Sinch client (user) registrations.

When you start SinchClient or register user via UserController you have to provide user identity. The first time the application instance and the Sinch client are running on behalf of a particular user, it's required to register against the Sinch service. The step of registering a user identity against the Sinch service requires the application instance to provide a token that authenticates the Application and grants permission (authorizes) the user to register. Once the application instance has successfully registered the user identity, the client will have obtained the necessary credentials to perform further authorized requests on behalf of the Application and for that specific user to make and receive calls.

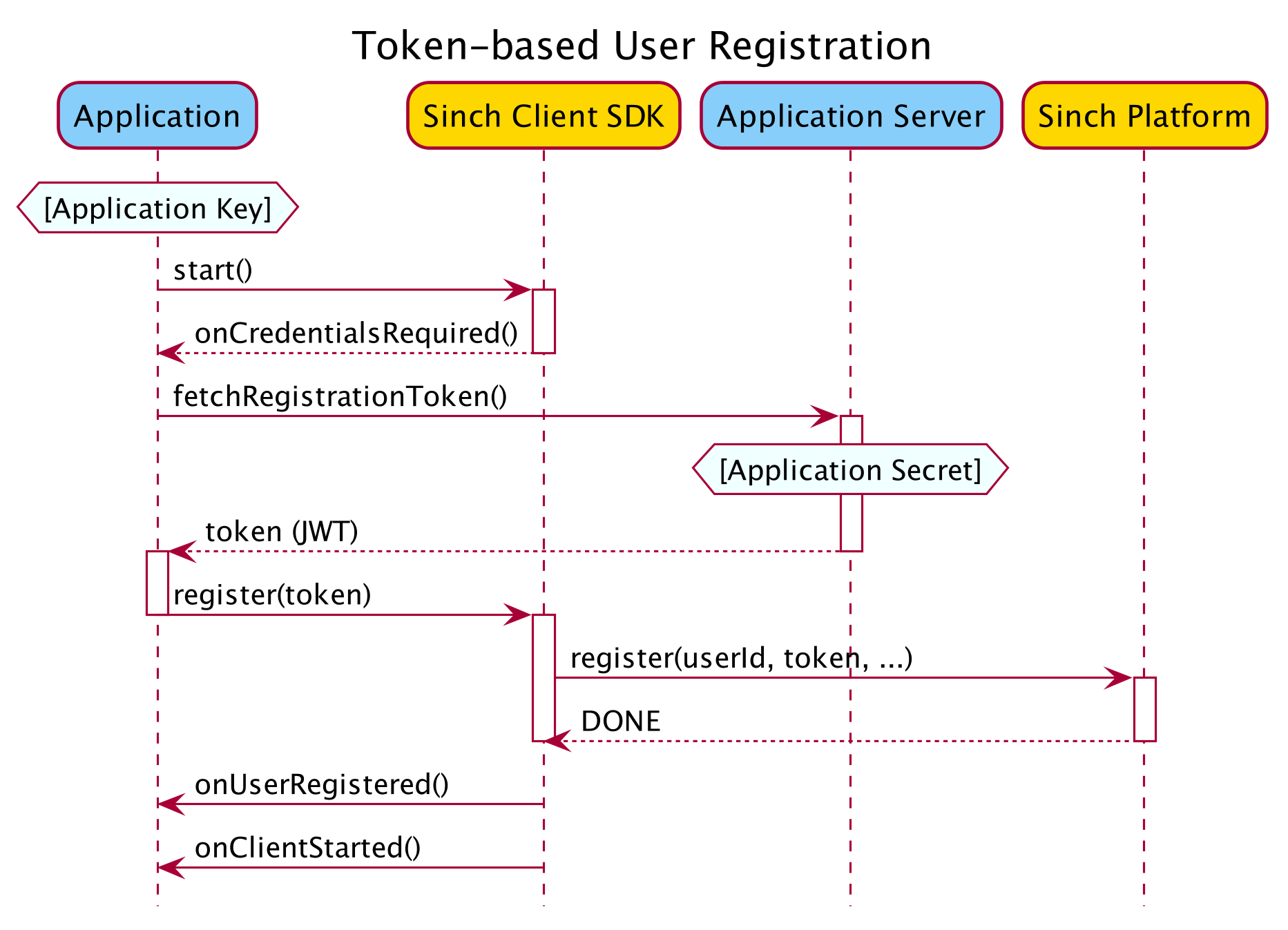

Token-based User Registration - Overview

To authorize the registration of a user, the application must provide a registration token to the SinchClient or UserController. This token should be in the form of a JSON Web Token (JWT) signed with a signing key derived from the Application Secret.

The recommended way to implement this authentication scheme is that the Application Secret should be kept securely on your server-side backend, the signed token should be created and signed on your server, then passed via a secure channel to the application instance and Sinch client running on a device.

The following sections describes, in detail, how to create and sign the JWT, and how to provide it to the SinchClient or UserController.

Creating a Registration Token

JWT Header

A registration token is a JWT with the following JWT header parameters:

Example of JWT header:

    {
      "alg": "HS256",
      "kid": "hkdfv1-20200102"
    }

JWT Claims

The JWT must contain the following claims:

Signing the JWT

The JWT should be signed using a signing key derived from the Sinch Application Secret as follows. Given:

• A function HMAC256(key, message) .
• A date-formatting function FormatDate(date, format) .
• The current date as variable now .
• Sinch Application Secret as variable applicationSecret , holding the secret as a base64 encoded string.

Derive the signing key as follows:

signingKey = HMAC256(BASE64-DECODE(applicationSecret), UTF8-ENCODE(FormatDate(now, "YYYYMMDD")))

Examples

Given the following input:

• Application Key = a32e5a8d-f7d8-411c-9645-9038e8dd051d
• Application Secret = ax8hTTQJF0OPXL32r1LHMA== (in base64 encoded format)
• User ID = foo
• nonce = 6b438bda-2d5c-4e8c-92b0-39f20a94b34e
• Current time: 2018-01-02 03:04:05 UTC
• JWT expiry = 600 seconds ( exp will be set to 600 seconds after iat )

We can construct a JWT as follows:

JWT Header:

{
   "alg": "HS256",
    "kid": "hkdfv1-20180102"
}

JWT Payload:

    {
      "iss": "//rtc.sinch.com/applications/a32e5a8d-f7d8-411c-9645-9038e8dd051d",
      "sub": "//rtc.sinch.com/applications/a32e5a8d-f7d8-411c-9645-9038e8dd051d/users/foo",
      "iat": 1514862245,
      "exp": 1514862845,
      "nonce":"6b438bda-2d5c-4e8c-92b0-39f20a94b34e"
    }

Derived Signing Key:

The derived signing key would in this case be AZj5EsS8S7wb06xr5jERqPHsraQt3w/+Ih5EfrhisBQ= (base64 encoded format)

Final Encoded JWT:

eyJhbGciOiJIUzI1NiIsImtpZCI6ImhrZGZ2MS0yMDE4MDEwMiJ9.eyJpc3MiOiIvL3J0Yy5zaW5jaC5jb20vYXBwbGljYXRpb25zL2EzMmU1YThkLWY3ZDgtNDExYy05NjQ1LTkwMzhlOGRkMDUxZCIsInN1YiI6Ii8vcnRjLnNpbmNoLmNvbS9hcHBsaWNhdGlvbnMvYTMyZTVhOGQtZjdkOC00MTFjLTk2NDUtOTAzOGU4ZGQwNTFkL3VzZXJzL2ZvbyIsImlhdCI6MTUxNDg2MjI0NSwiZXhwIjoxNTE0ODYyODQ1LCJub25jZSI6IjZiNDM4YmRhLTJkNWMtNGU4Yy05MmIwLTM5ZjIwYTk0YjM0ZSJ9.EUltTTD4fxhkwCgLgj6qSQXKawpwQ952Ywm3OwQSARo

More detailed examples on how to implement this in various languages, including reference data for unit tests, is available at https://github.com/sinch/sinch-rtc-api-auth-examples.

For additional information about JWT, along with a list of available libraries for generating signed JWTs, see https://jwt.io. For detailed information about the JWT specification, see https://tools.ietf.org/html/rfc7519.

Providing a Registration Token to SinchClient

When starting the client (SinchClient.start()) for the first time with a new user, the client will ask for a token via SinchClientListener.onCredentialsRequired()

    // Instantiate a SinchClient using the SinchClientBuilder.
    val sinchClient = SinchClient.builder()
            .context(applicationContext)
            .userId("<user id>")
            .applicationKey("<application key>")
            .environmentHost("ocra.api.sinch.com")
            .build()
    sinchClient.addSinchClientListener(SinchClientListener())
    sinchClient.start()

In your SinchClientListener class:

    override fun onCredentialsRequired(clientRegistration: ClientRegistration) {

        yourAuthServer.getRegistrationToken(userId, YourAuthCallback() {
            fun onSuccess(token: String) {
                clientRegistration.register(token)
            }
            fun onFailure() {
                clientRegistration.registerFailed()
            }
        })
    }

Providing a Registration Token to UserController

UserController is a component that serves the purpose of registration against the Sinch Backend to receive incoming calls via Managed Push. More about it can be found later in the chapter UserController.

To provide the registration token to UserController use the similar scheme:

    val userController = UserController.builder()
                .context(applicationContext)
                .applicationKey("<application key>")
                .userId("<user id>")
                .environmentHost("ocra.api.sinch.com")
                .pushConfiguration(pushConfiguration)
                .build()
    userController.registerUser(userRegistrationCallback, pushTokenRegistrationCallback)

Provide signed registration token in your UserRegistrationCallback.onCredentialsRequired()

    // Your UserRegistrationCallback implementation

    override fun onCredentialsRequired(clientRegistration: ClientRegistration) {

        yourAuthServer.getRegistrationToken(userId, YourAuthCallback() {
            fun onSuccess(token: String) {
                clientRegistration.register(token)
            }
            fun onFailure() {
                clientRegistration.registerFailed()
            }
        })
    }

Limiting Client Registration with Expiration Time

Depending on your security requirements, you may want to limit a client registration time-to-live (TTL). Limiting the client registration will effectively limit the Sinch client acting on behalf of the User on the particular device after the TTL has expired. This will prevent the client from making or receiving calls after the registration TTL has expired.

To limit the registration in time, create the JWT as described in the sections above, but with the additional claim sinch:rtc:instance:exp. The value for this claim should be in the same format as claims iat and exp, a JSON numeric value representing the number of seconds since Unix Epoch (UTC).

Example JWT Payload:

{
      "iss": "//rtc.sinch.com/applications/a32e5a8d-f7d8-411c-9645-9038e8dd051d",
      "sub": "//rtc.sinch.com/applications/a32e5a8d-f7d8-411c-9645-9038e8dd051d/users/foo",
      "iat": 1514862245,
      "exp": 1514862845,
      "nonce":"6b438bda-2d5c-4e8c-92b0-39f20a94b34e",
      "sinch:rtc:instance:exp": 1515035045
}

Automatic Extension of Client Registration Time-to-Live (TTL)

The Sinch client will automatically request to extend the TTL of its registration by invoking SinchClientListener.onCredentialsRequired()

The request to extend the client registration TTL is triggered when the Sinch client is started and the expiry of TTL is detected to be near in the future. "Near in the future" is subject to internal implementation details, but the Sinch client will regularly try to extend its registration and will adjust the interval according to the TTL.
