Conversation API Telegram Bot Support

Note

Telegram Bot channel is currently open to selected customers on Sinch Portal, to request access, send email to telegram@sinch.com for beta support, send to ConvAPITelegrambeta@sinch.com

Telegram Bot channel enables communication with users of Telegram ecosystem through Conversation API. You need a Telegram bot for integrating your Conversation API with Telegram. If you don't already have one follow the steps below to create a new Telegram bot:

  1. You must have an active Telegram account which will be used to administer your new bot. You already have an account if you have Telegram app installed and can sign in. Otherwise, download the Telegram app from the app store of your mobile device.

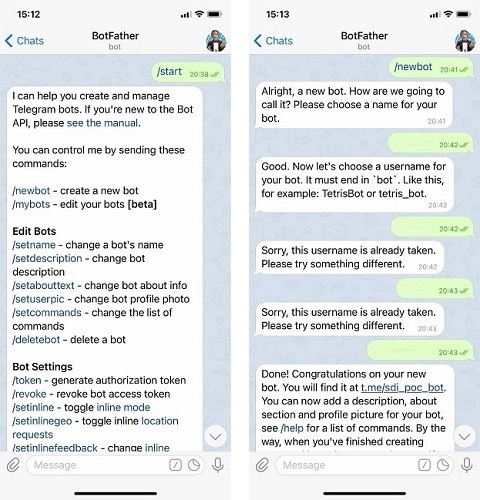

  2. Find BotFather in Telegram app, type /start to get the list of all commands. type /newbot to start creating your bot by following the instructions. Once your bot is created, its token will appear. Please keep this token.

BotFather

Channel Configuration

The easiest way to configure your Conversation API app with Telegram support is to use Sinch Portal. Just select your app and click on "SET UP CHANNEL" beside the Telegram Bot channel. You will be asked to enter the token for your Telegram bot.

Setup Telegram Bot integration using the API

If you decide to configure your app through API calls follow these 2 steps:

  1. Update your Conversation API app with Telegram Bot channel credentials as given in the example snippet below:

    {
     "channel_credentials": [
       {
         "channel": "TELEGRAM",
         "telegram_credentials": {
           "token": "{{TELEGRAM_BOT_TOKEN}}"
         }
       }
     ]
    }

    You need to replace {{TELEGRAM_BOT_TOKEN}} with your Telegram bot's access token.

  2. Set the webhook for your Telegram bot to the URL of the Conversation API adapter using the instructions in the Telegram Bot API documentation. This step is done automatically when configuring the Telegram integration through the Sinch Portal. The format of the adapter callback URL is: https://telegram-adapter.{{REGION}}.conversation-api.prod.sinch.com/adapter/v1/{{CONVERSATION_APP_ID}}/callback

Where {{REGION}} is one of eu1 or us1 and must match the region of your app while {{CONVERSATIONAPPID}} is the id of your Conversation API app.

Don't forget to add Conversation API webhooks to your app in order to receive delivery receipts and inbound messages. Adding webhooks can be done through the portal or using the management API.

Testing the integration

To test your integration, open the Telegram app and search for the name of your Telegram bot, click Start Bot or Restart Bot to subscribe to bot. You will get 2 callbacks on your Conversation API webhooks like:

(IDs and Identities are masked)

jsonjson
{
  "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
  "accepted_time": "2021-06-08T07:54:35.997638Z",
  "event_time": "2021-06-08T07:54:35.171Z",
  "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
  "opt_in_notification": {
    "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
    "channel": "TELEGRAM",
    "identity": "1234567",
    "status": "OPT_IN_SUCCEEDED",
    "request_id": "01F7N9VEK2MZEX0Q9D613H1DH5"
  }
}
{
  "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
  "accepted_time": "2021-06-08T07:54:35.997638Z",
  "event_time": "2021-06-08T07:54:35.171Z",
  "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
  "message": {
    "id": "01F7NEMGK72JA707P229260VJ2",
    "direction": "TO_APP",
    "contact_message": {
      "text_message": {
        "text": "/start"
      }
    },
    "channel_identity": {
      "channel": "TELEGRAM",
      "identity": "1234567",
      "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
    },
    "conversation_id": "01F6PEMQ3X4FAS1475DPQY10VT",
    "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
    "metadata": "",
    "accept_time": "2021-06-08T07:54:35.171Z"
  }
}

One is optin_in_notification and the other is the actual message sent from the handset.

Both callbacks contain a field contact_id which is the identifier of the contact which was automatically created when processing the inbound Telegram message. This contact contains the channel identity for the Telegram user, and you can use this contact_id to reach the Telegram user.

The Telegram Bot channel identities are identifiers which are scoped to all apps. This means that the same Telegram user will have the same channel identities for two different Conversation API apps.

Sending Messages

Some rich messages are natively supported by Telegram channel while others must be transcoded. The following sections demonstrate the mapping between the Conversation API generic message format and the way Telegram renders the messages on mobile devices.

When sending messages on Telegram Bot you can use Telegram channel specific properties, like Telegram Link Disable. Check out Channel Specific Properties for more info.

Text Messages

Telegram channel natively supports text messages.

Text Message

The code to send a text message for this channel doesn't differ from the generic message and can be viewed here.

Media Messages

Telegram channel natively supports various type of media messages.

  • image: image/.jpeg, image/.jpg, image/.png

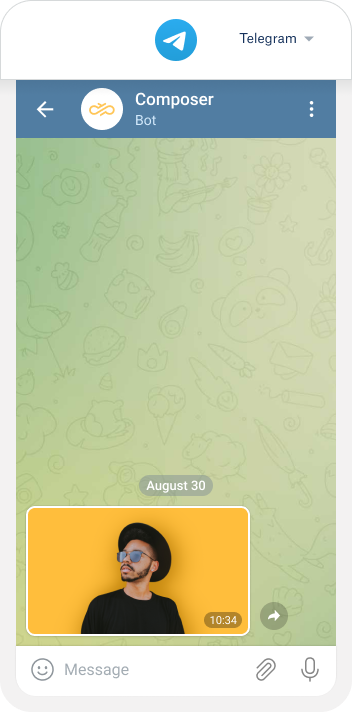

    png
  • Video: video/.mp4

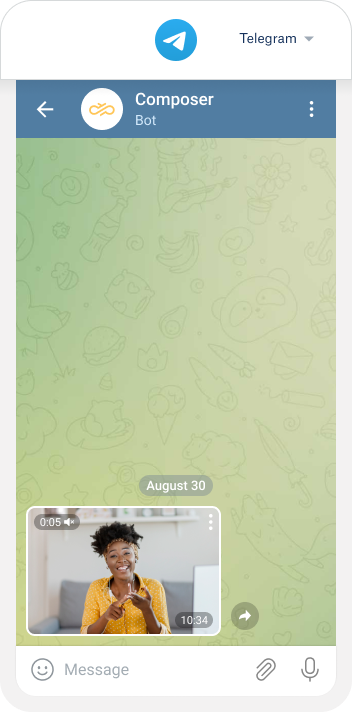

    mp4
  • Audio: audio/.mp3, audio/.m4a, audio/.ogg, audio/.ocg

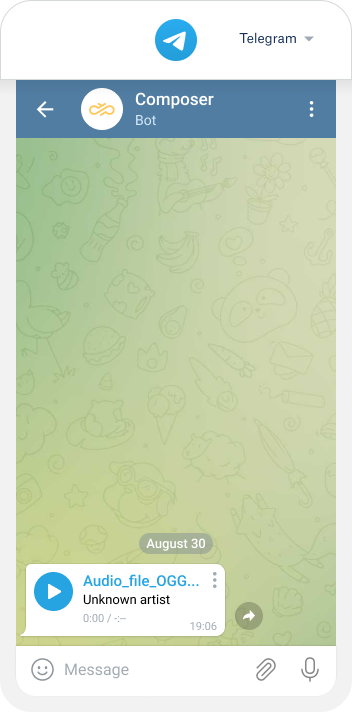

    ogg
  • File: application/.zip, application/.pdf

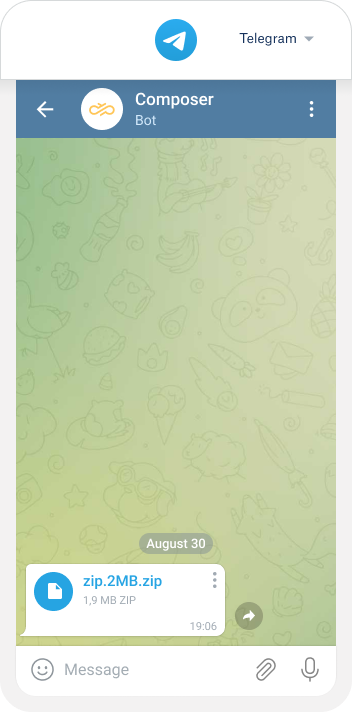

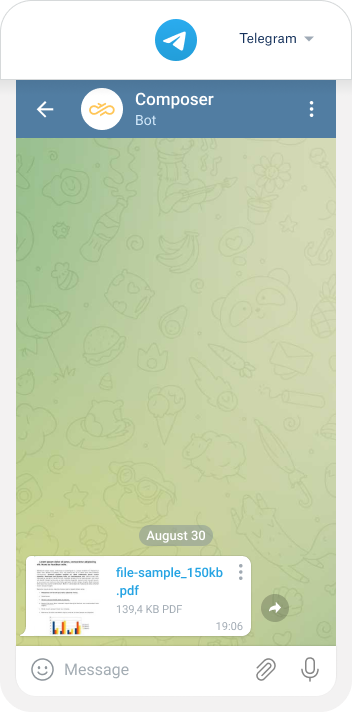

    zip pdf

The code to send a media message for this channel doesn't differ from the generic message and can be viewed here.

Choice Messages

Telegram channel natively supports choice messages. The following image gives an example of a choice message.

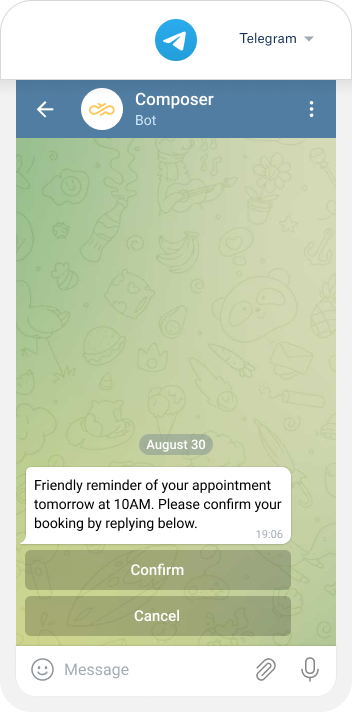

Choice Message

The code to send a choice message for this channel doesn't differ from the generic message and can be viewed here.

Card Messages

Telegram channel natively supports card messages with one media content. The following image gives an example of a card message.

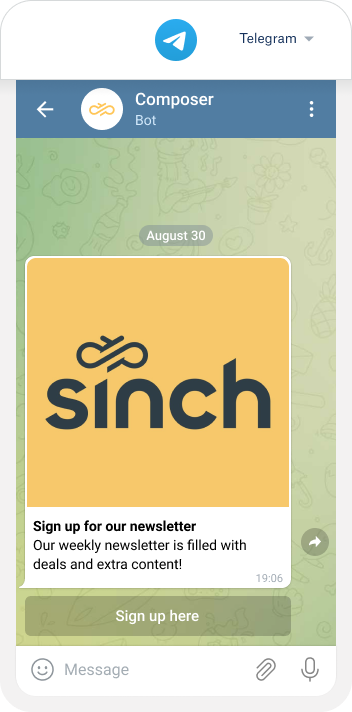

Card Message

The code to send a card message for this channel doesn't differ from the generic message and can be viewed here.

Location Messages

Telegram channel natively supports location messages.

Location Message

The code to send a location message for this channel doesn't differ from the generic message and can be viewed here.

Receiving Messages

Telegram channel supports various kinds of MO messages - text, media, location. All of these are delivered by Conversation API with POST to MESSAGE_INBOUND webhook:


Example text MO:

{
   "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
   "accepted_time": "2021-06-08T07:54:35.997638Z",
   "event_time": "2021-06-08T07:54:35.171Z",
   "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
   "message": {
      "id": "01F7NEMGK72JA707P229260VJ2",
      "direction": "TO_APP",
      "contact_message": {
         "text_message": {
            "text": "/start"
         }
      },
      "channel_identity": {
         "channel": "TELEGRAM",
         "identity": "1234567",
         "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
      },
      "conversation_id": "01F6PEMQ3X4FAS1475DPQY10VT",
      "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
      "metadata": "",
      "accept_time": "2021-06-08T07:54:35.171Z"
   }
}

Example location MO:

{
   "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
   "accepted_time": "2021-06-08T09:46:09.797607Z",
   "event_time": "2021-06-08T09:46:09.797607Z",
   "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
   "message": {
      "id": "01EKJ0Z07XKM6H04VB5Q941QBP",
      "direction": "TO_APP",
      "contact_message": {
         "location_message": {
            "title": "",
            "coordinates": {
               "latitude": 55.73064,
               "longitude": 13.160131
            },
            "label": ""
         }
      },
      "channel_identity": {
         "channel": "TELEGRAM",
         "identity": "1344913942",
         "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
      },
      "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
      "contact_id": "01F6PMEFRNHR201C7ZKBX007PE",
      "metadata": "",
      "accept_time": "2021-06-08T09:46:09.797607Z"
   }
}

Example media message:

{
   "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
   "accepted_time": "2021-06-08T09:45:39.284927Z",
   "event_time": "2021-06-08T09:45:39.284927Z",
   "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
   "message": {
      "id": "01F7NG6SF8BV9J0WHT0FNE0GFR",
      "direction": "TO_APP",
      "contact_message": {
         "media_message": {
            "url": "https://convapi-eu1tst.s3.eu-west-1.amazonaws.com/01EPRZJ1HXTDE9BNM6JT4417GE/01F7NG6S58PYX61S8FXPXW0GW0.mp4",
            "thumbnail_url": ""
         }
      },
      "channel_identity": {
         "channel": "TELEGRAM",
         "identity": "1234567",
         "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
      },
      "conversation_id": "01F6PMEFTK88Z013PECHAW18G0",
      "contact_id": "01F6PMEFRNHR201C7ZKBX007PE",
      "metadata": "",
      "accept_time": "2021-06-08T09:45:39.284927Z"
   }
}

Example choice response message:

{
  "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
  "accepted_time": "2021-09-24T08:12:14.760691Z",
  "event_time": "2021-09-24T08:12:14.219227Z",
  "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
  "message": {
    "id": "01FGBDSC9WKCTN1RRRYNMR1B0N",
    "direction": "TO_APP",
    "contact_message": {
      "choice_response_message": {
        "message_id": "01FGBDS1DWMBPJ14MZEKWR03EY",
        "postback_data": "OPTION1"
      }
    },
    "channel_identity": {
      "channel": "TELEGRAM",
      "identity": "1722576658",
      "app_id": ""
    },
    "conversation_id": "01F8VEFYDN744C1SW51WT11TVD",
    "contact_id": "01F8VEFETMV94W0M1NTPXA1H7S",
    "metadata": "",
    "accept_time": "2021-09-24T08:12:14.697034Z"
  },
  "message_metadata": ""
}

Receiving Status

Telegram Bot doesn't provide delivery status, the positive status of a message delivery to Telegram channel will be QUEUED_ON_CHANNEL.

{
   "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
   "accepted_time": "2021-06-08T10:14:25.450Z",
   "event_time": "2021-06-08T10:14:25.866745Z",
   "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
   "message_delivery_report": {
      "message_id": "01F7NHVFDA09MQ0QZZ3DMD1TCD",
      "conversation_id": "01F6PEMQ3X4FAS1475DPQY10VT",
      "status": "QUEUED_ON_CHANNEL",
      "channel_identity": {
         "channel": "TELEGRAM",
         "identity": "1234567",
         "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
      },
      "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
      "metadata": ""
   }
}

If the status is FAILED the reason will include more information about the failure.

{
  "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
  "accepted_time": "2021-06-08T10:05:06.244Z",
  "event_time": "2021-06-08T10:05:06.551038Z",
  "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
  "message_delivery_report": {
    "message_id": "01F7NHADA4ACWR150GRK14102N",
    "conversation_id": "01F6PEMQ3X4FAS1475DPQY10VT",
    "status": "FAILED",
    "channel_identity": {
      "channel": "TELEGRAM",
      "identity": "1234567",
      "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE"
    },
    "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
    "reason": {
      "code": "MEDIA_NOT_REACHABLE",
      "description": "The provided media [https://someone.github.io/sample.png] responded with [Bad Gateway]",
      "sub_code": "UNSPECIFIED_SUB_CODE"
    },
    "metadata": ""
  }
}

Unsubscribe Bot

It's possible for users to block a Telegram Bot by using "Stop Bot" (or "Delete Chat" depending on iOS or Android) from their Telegram App. When this happens, an opt-out notification will be sent to App webhook callback so customers can take action such as removing contact_id from their user list.

{
  "app_id": "01EPRZJ1HXTDE9BNM6JT4417GE",
  "accepted_time": "2021-06-08T07:54:03.165316Z",
  "event_time": "2021-06-08T07:54:02.112Z",
  "project_id": "ab5336b1-d1b0-45e8-aaa6-b35f13c41d1b",
  "opt_out_notification": {
    "contact_id": "01EPSAJOPKWLQ80W5PM5P10HMY",
    "channel": "TELEGRAM",
    "identity": "1234567",
    "status": "OPT_OUT_SUCCEEDED",
    "request_id": "01F7N9TEH11X7B15XQ6VBR04G7"
  }
}
