Viber Business Messages channel message support

The Viber Business Messages channel of the Conversation API supports a wide variety of message types.

Sending Messages

Some rich messages are natively supported by VIBERBM channel while others must be transcoded. The following sections demonstrate the mapping between the Conversation API generic message format and the way VIBERBM renders the messages on mobile devices.

Text Messages

The Viber Business Messages channel natively supports text messages. The maximum length of a text message is 1000 characters. Longer content will be truncated. Texts can be formatted with markdown.

Format	Markdown	String to be sent	Appearance on message
Bold	One asterisk at each end of the text: *	*This text will be bold*	This text will be bold
Italics	One underscore at each end of the text: _	_This text will be in italics_	This text will be in italics
Monospace	Three backticks at each end of the text:	This text will be in monospace	This text will be in monospace
Strikethrough	One tilde at each end of the text: ~	~This text will have a strikethrough~	This text will have a strikethrough

The following image gives an example of a text message:

The code to send a text message for this channel doesn't differ from the generic message and can be viewed here.

Media Messages

Viber Business Messages supports media messages natively.

Supported image types:

• .jpg
• .jpeg
• .png

Supported document types:

• .doc
• .docx
• .rtf
• .dot
• .dotx
• .odt
• .odf
• .fodt
• .txt
• .info
• .pdf
• .xps
• .pdax
• .eps
• .xls
• .xlsx
• .ods
• .fods
• .csv
• .xlsm
• .xltx

Documents and media sent using media messages must be less than 200MB in size.

When sending a video media message, the following additional requirements apply:

• The thumbnail_url must be set. See the media message schema for more information.
• The thumbnail URL can be a maximum of 1000 characters.
• The HTTP server that provides the video needs to set Content-Length in the HEAD response.
• The video duration must be less than 600 seconds.

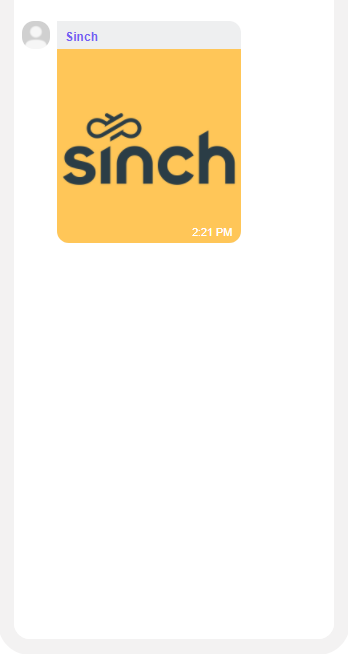

The following image gives an example of a media message.

The code to send a media message for this channel doesn't differ from the generic message and can be viewed here.

Choice Messages

Viber Business Messages channel provides native support for single choice (URL, Call, or Location) choice messages. The title of the choice has a maximum length of 30 characters, longer content will be truncated. The following image gives an example of a choice message.

The code to send a choice message for this channel doesn't differ from the generic message and can be viewed here.

Card Messages

Viber Business Messages supports natively Card messages with one URL, Call, or Location choice. The media message in the Card should point to an image. The title of the choice in the Card message has a maximum length of 30 characters, longer content will be truncated.

The following image gives an example of a card message.

The code to send a card message for this channel doesn't differ from the generic message and can be viewed here.

Carousel Messages

Viber Business Messagers doesn't support natively Carousel messages and so they're transcoded and sent as text messages by Conversation API. The following image gives an example of a carousel message.

The code to send a carousel message for this channel doesn't differ from the generic message and can be viewed here.

Location Messages

Viber Business Messages channel doesn't natively support location messages and so they're transcoded and sent as text messages by Conversation API. The following image gives an example of a location message.

The code to send a location message for this channel doesn't differ from the generic message and can be viewed here.

Receiving Messages

VIBERBM supports contact initiated messages and choice responses.

Conversation API POST to MESSAGE_INBOUND webhook for text message:

{
  "app_id": "01E3S8B6YCMRNR0GGM94H80ACX",
  "accepted_time": "2020-04-24T08:02:50.184581Z",
  "message": {
    "id": "01E6NKBV63YG6K01ENEW7S1N80",
    "direction": "TO_APP",
    "contact_message": {
      "text_message": {
        "text": "Hi from contact"
      }
    },
    "channel_identity": {
      "channel": "VIBERBM",
      "identity": "46712312312",
      "app_id": ""
    },
    "conversation_id": "01E6K4A8PGZ6MV0GD3C7M901MZ",
    "contact_id": "01E6K4A8N3NANZ05VM0FS80EHD",
    "metadata": "",
    "accept_time": "2020-04-24T08:02:50.179021Z"
  }
}

Conversation API POST to MESSAGE_INBOUND webhook for choice response message:

{
  "app_id": "01E3S8B6YCMRNR0GGM94H80ACX",
  "accepted_time": "2020-04-24T08:02:50.184581Z",
  "message": {
    "id": "01E6NKBV63YG6K01ENEW7S1N80",
    "direction": "TO_APP",
    "contact_message": {
      "choice_response_message": {
        "message_id": "01EKJ2SWHGDMYA0F0F1PQJ09WQ",
        "postback_data": "postback"
      }
    },
    "channel_identity": {
      "channel": "VIBERBM",
      "identity": "46712312312",
      "app_id": ""
    },
    "conversation_id": "01E6K4A8PGZ6MV0GD3C7M901MZ",
    "contact_id": "01E6K4A8N3NANZ05VM0FS80EHD",
    "metadata": "",
    "accept_time": "2020-04-24T08:02:50.179021Z"
  }
}

Conversation API POST to MESSAGE_INBOUND webhook for media response message:

{
  "app_id": "01E3S8B6YCMRNR0GGM94H80ACX",
  "accepted_time": "2020-10-01T12:10:55.073703Z",
  "event_time": "2020-10-01T12:10:53.991Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message": {
    "id": "01E6NKBV63YG6K01ENEW7S1N80",
    "direction": "TO_APP",
    "contact_message": {
      "media_message": {
        "url": "https://1vxc0v12qhrm1e72gq1mmxkf-wpengine.netdna-ssl.com/wp-content/uploads/2019/05/Sinch-logo-Events.png"
      }
    },
    "channel_identity": {
      "channel": "VIBERBM",
      "identity": "46712312312",
      "app_id": ""
    },
    "conversation_id": "01E6K4A8PGZ6MV0GD3C7M901MZ",
    "contact_id": "01E6K4A8N3NANZ05VM0FS80EHD",
    "metadata": "",
    "accept_time": "2020-04-24T08:02:50.179021Z"
  }
}

Receiving Delivery Receipts

Messages sent on VIBERBM channel have three statuses: DELIVERED, READ and FAILED. Below is an example for DELIVERED receipt - READ and FAILED differ by the status and reason only. Conversation API POST to MESSAGE_DELIVERY webhook:

{
  "app_id": "01E3S8B6YCMRNR0GGM94H80ACX",
  "accepted_time": "2020-04-23T09:55:04.766Z",
  "message_delivery_report": {
    "message_id": "01E6K7CMXY3KHH0AGCTY6D04F2",
    "conversation_id": "01E6JY5HMCADX31SANQ0YE0CH6",
    "status": "DELIVERED",
    "channel": "VIBERBM",
    "reason": "",
    "metadata": ""
  }
}

Receiving User Opt-In/Out

Viber users can at any time opt-in or opt-out of receiving messages by given VIBERBM account.

Opt-In

Conversation API POST to OPT_IN webhook:

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2021-06-08T07:54:03.165316Z",
  "event_time": "2021-06-08T07:54:02.112Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "opt_in_notification": {
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "channel": "VIBERBM",
    "identity": "123456789",
    "status": "OPT_IN_SUCCEEDED",
    "request_id": "01F7N9TEH11X7B15XQ6VBR04G7"
  }
}

Opt-Out

Conversation API POST to OPT_OUT webhook:

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2021-06-08T07:54:03.165316Z",
  "event_time": "2021-06-08T07:54:02.112Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "opt_out_notification": {
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "channel": "VIBERBM",
    "identity": "123456789",
    "status": "OPT_OUT_SUCCEEDED",
    "request_id": "01F7N9TEH11X7B15XQ6VBR04G7"
  }
}
