Facebook Messenger channel message support

The Facebook Messenger channel of the Conversation API supports a wide variety of message types.

Sending Messages

The following table details the mapping between the Conversation API generic message format and the way Messenger renders the messages on mobile devices.

Note:

If you want to send messages outside the standard 24h response window, you can do so by adding Messenger channel specific properties in your message request. For more information, see Facebook Messenger channel properties.

If you want to use Marketing Messages to send messages outside the standard messaging window, see Marketing Messages.

Message Type	Natively Supported?	Special Instructions
Text Message	Yes, this type of message is natively supported. For example:	The code to send a text message for this channel doesn't differ from the generic message and can be viewed here.
Media Message	Yes, this type of message is natively supported for the following media types: Image Video Audio Document For example:	The code to send a media message for this channel doesn't differ from the generic message and can be viewed here.
Choice Message	Yes, this type of message is natively supported for the following choice types: Text Choice URL Choice Location Choice Call Choice For example:	The code to send a choice message for this channel doesn't differ from the generic message and can be viewed here.

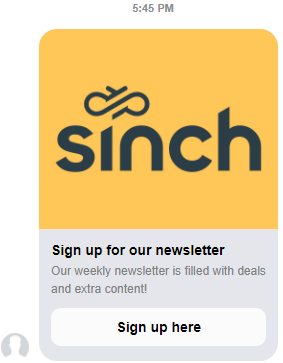

Card Message	Yes, this type of message is natively supported. Note that the `media_message` property only supports images. For example:	The code to send a card message for this channel doesn't differ from the generic message and can be viewed here.

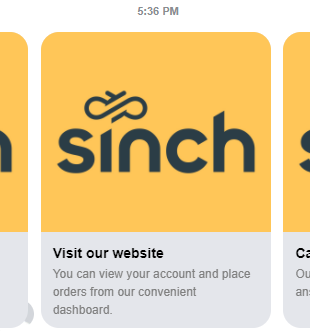

Carousel Message	Yes, this type of message is natively supported. Note that the `media_message` property only supports images. For example:	The code to send a carousel message for this channel doesn't differ from the generic message and can be viewed here.
Location Message	Yes, this type of message is natively supported. For example:	The code to send a location message for this channel doesn't differ from the generic message and can be viewed here.

Receiving Delivery Receipts

Messages sent on the Facebook Messenger channel can have one of three statuses: DELIVERED, READ, or FAILED. If the status is FAILED, a reason will be included that provides more information about the failure. Below is an example of a Conversation API POST to the MESSAGE_DELIVERY webhook with a READ receipt; a FAILED receipt would have a different status and reason.

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2020-10-01T12:10:00.530Z",
  "event_time": "2020-10-01T12:10:03.624Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message_delivery_report": {
    "message_id": "01EKJ13DYJX54C0N062N0Q1J9F",
    "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
    "status": "READ",
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EB37HMH1M6SV18ASNS3G135H"
    },
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "metadata": ""
  }
}

Marketing Messages

Marketing Messages is a messaging functionality supported by Meta on their Messenger platform. These messages allow the businesses to send proactive, automated messages to users (their customers) who have opted-in to receiving them, thus driving the engagement, efficiently increasing customer retention rate, and boosting sales. Businesses will be able to send sales notifications, updates, newsletters – whatever they like, with frequency options ranging from daily to monthly. This allows businesses to reach their customers at any moment in their journey. Meta provides this functionality without any messaging fee.

Requesting user opt-in

Marketing Messages can be sent only to a user who opted in. For more information about ways to get opt-ins, visit: https://developers.facebook.com/docs/messenger-platform/send-messages/recurring-notifications/ways-to-get-opt-ins

An opt-in can be requested using a template message. For complex template parameters, use the following format: elements[0].title. For more information about template parameters, see https://developers.facebook.com/docs/messenger-platform/marketing-messages#sample-opt-in-request

Example opt-in request:

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "recipient": {
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW"
  },
  "message": {
    "template_message": {
      "channel_template": {
        "MESSENGER": {
          "template_id": "notification_messages",
          "parameters": {
            "title": "Receive our marketing messages",
            "image_url": "https://scontent.xx.fbcdn.net/v/t1.15752-9/174244980_1170704636714502_2133968827805507208_n.jpg",
            "payload": "PAYLOAD"
          }
        }
      }
    }
  }
}

Note:

At this time, users are not able to create channel-specific templates for the Facebook Messenger channel. If you do not have access to a Facebook Messenger channel-specific template, you may use the explicit channel message feature of the Conversation API to send an opt-in request.

Sending Marketing Messages

A Marketing Message can be any type of message. It just needs to include the notification_messages_token received during opt-in. For more information, see Receiving user Opt-in/out and Facebook Messenger channel properties

Receiving Messages

Facebook Messenger channel supports various kinds of contact messages - text, media, media card, location, and quick replies.

Note:

Please note that the media URLs included in the contact messages are valid for 7 days. After that the media is deleted from Conversation API storage.

All of these are delivered by Conversation API with a POST request to the MESSAGE_INBOUND webhook:

Text message response webhook example

Below is an example of a Conversation API POST to the MESSAGE_INBOUD webhook for a text message response:

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2020-10-01T12:06:13.806686Z",
  "event_time": "2020-10-01T12:06:13.254Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message": {
    "id": "01EKJ0WGFM7TR314K4D9Y31J5S",
    "direction": "TO_APP",
    "contact_message": {
      "text_message": {
        "text": "This is text message from a Messenger user."
      }
    },
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EB37HMH1M6SV18ASNS3G135H"
    },
    "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "metadata": "",
    "accept_time": "2020-10-01T12:06:13.794339Z"
  }
}

Location message response webhook

Below is an example of a Conversation API POST to the MESSAGE_INBOUND webhook for a location message:

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2020-10-01T12:07:35.513615Z",
  "event_time": "2020-10-01T12:07:34.935Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message": {
    "id": "01EKJ0Z07XKM6H04VB5Q941QBP",
    "direction": "TO_APP",
    "contact_message": {
      "location_message": {
        "title": "",
        "coordinates": {
          "latitude": 55.73064,
          "longitude": 13.160131
        },
        "label": ""
      }
    },
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EB37HMH1M6SV18ASNS3G135H"
    },
    "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "metadata": "",
    "accept_time": "2020-10-01T12:07:35.496355Z"
  }
}

Media message response webhook

Below is an example of a Conversation API POST to the MESSAGE_INBOUND webhook for a media message:

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2020-10-01T12:10:55.073703Z",
  "event_time": "2020-10-01T12:10:53.991Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message": {
    "id": "01EKJ1534NWK5R02TGWEJN13HA",
    "direction": "TO_APP",
    "contact_message": {
      "media_message": {
        "url": "https://scontent.xx.fbcdn.net/v/t1.15752-9/174244980_1170704636714502_2133968827805507208_n.jpg"
      }
    },
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EB37HMH1M6SV18ASNS3G135H"
    },
    "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "metadata": "",
    "accept_time": "2020-10-01T12:10:55.060170Z"
  }
}

Card message repsonse webhook

Below is an example of a Conversation API POST to the MESSAGE_INBOUND webhook for a media card message:

Copy

Copied

{
  "app_id": "01EB37HMH1M6SV18ASNS3G135H",
  "accepted_time": "2020-10-01T12:10:55.073703Z",
  "event_time": "2020-10-01T12:10:53.991Z",
  "project_id": "c36f3d3d-1513-4edd-ae42-11995557ff61",
  "message": {
    "id": "01EKJ1534NWK5R02TGWEJN13HA",
    "direction": "TO_APP",
    "contact_message": {
      "media_card_message": {
        "url": "https://scontent.xx.fbcdn.net/v/t1.15752-9/174244980_1170704636714502_2133968827805507208_n.jpg",
        "caption": "caption text"
      }
    },
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EB37HMH1M6SV18ASNS3G135H"
    },
    "conversation_id": "01EKJ0KSWXMVDF05MG9TQ20S06",
    "contact_id": "01EKA07N79THJ20WSN6AS30TMW",
    "metadata": "",
    "accept_time": "2020-10-01T12:10:55.060170Z"
  }
}

Quick Reply message response webhook

Below is an example of a Conversation API POST to the MESSAGE_INBOUND webhook for a quick reply message:

Copy

Copied

{
  "app_id": "01EGQYR8N9S5VF096DQKYF08JD",
  "accepted_time": "2020-10-01T12:39:48.469849Z",
  "event_time": "2020-10-01T12:39:48.296Z",
  "project_id": "ab5536b1-31b0-45e8-aec6-b35f13c41d0b",
  "message": {
    "id": "01EKJ2SZX9N6F11SJ11G511H6J",
    "direction": "TO_APP",
    "contact_message": {
      "choice_response_message": {
        "message_id": "01EKJ2SWHGDMYA0F0F1PQJ09WQ",
        "postback_data": "suggested reply postback"
      }
    },
    "channel_identity": {
      "channel": "MESSENGER",
      "identity": "534183549153491",
      "app_id": "01EGQYR8N9S5VF096DQKYF08JD"
    },
    "conversation_id": "01EHY7KA6ZC03C1Q5QTRZ60GDA",
    "contact_id": "01EHY7KA2BYT8A11E6Y2271NHA",
    "metadata": "",
    "accept_time": "2020-10-01T12:39:48.457764Z"
  }
}

Receiving user opt-in/out

Messenger users can, at any time, opt-in or opt-out of receiving marketing messages.

Note:

Opt-in/out for Marketing Messages does not affect sending standard messages using the standard messaging window.

Opt-in

Below is an example of a Conversation API POST to the OPT_IN webhook:

Copy

Copied

{
  "app_id": "01EGQYR8N9S5VF096DQKYF08JD",
  "accepted_time": "2023-09-18T09:50:55.941943739Z",
  "event_time": "2023-09-18T09:50:54.229Z",
  "project_id": "ab5536b1-31b0-45e8-aec6-b35f13c41d0b",
  "opt_in_notification": {
    "contact_id": "01EHY7KA2BYT8A11E6Y2271NHA",
    "channel": "MESSENGER",
    "identity": "534183549153491",
    "status": "OPT_IN_SUCCEEDED",
    "request_id": "01HAKV6EY5NBKXS130EKKV4C0A",
    "processing_mode": "CONVERSATION"
  },
  "message_metadata": "{\"payload\":\"PAYLOAD\",\"notification_messages_token\":\"812753123357423491\",\"token_expiry_timestamp\":2145916800000,\"notification_messages_timezone\":\"UTC\"}",
  "correlation_id": ""
}

Opt-out

Below is an example of a Conversation API POST to the OPT_OUT webhook:

Copy

Copied

{
  "app_id": "01EGQYR8N9S5VF096DQKYF08JD",
  "accepted_time": "2023-09-18T11:04:14.947458371Z",
  "event_time": "2023-09-18T11:04:14.812Z",
  "project_id": "ab5536b1-31b0-45e8-aec6-b35f13c41d0b",
  "opt_out_notification": {
    "contact_id": "01EHY7KA2BYT8A11E6Y2271NHA",
    "channel": "MESSENGER",
    "identity": "534183549153491",
    "status": "OPT_OUT_SUCCEEDED",
    "request_id": "01HAKZCPV3CDMRTA53F5QNNT8E",
    "processing_mode": "CONVERSATION"
  },
  "message_metadata": "{\"payload\":\"PAYLOAD\",\"notification_messages_token\":\"812753123357423491\",\"token_expiry_timestamp\":2145916800000}",
  "correlation_id": ""
}
